Foundry Operations
Our modern, highly automated, mold-making, green sand Foundry for gray inductile castings is quick to adapt to customers high volume needs. We are efficient and focused to exceed customer’s expectations.
Product Spec Sheets:

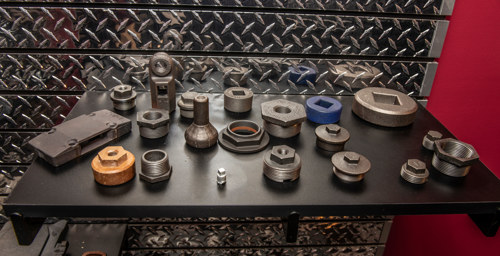

- Iron Round Pipe Caps

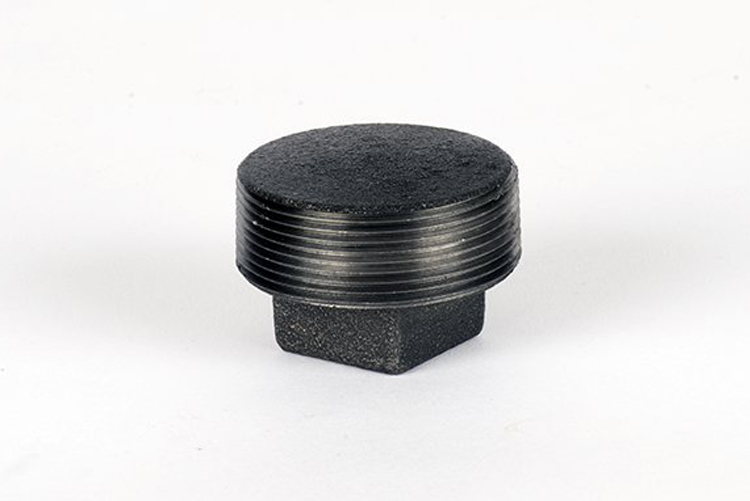

- Iron Bar Head Pipe Plugs

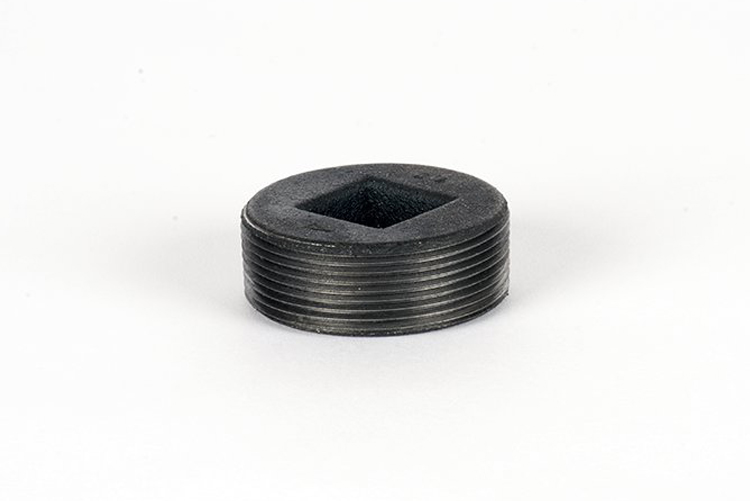

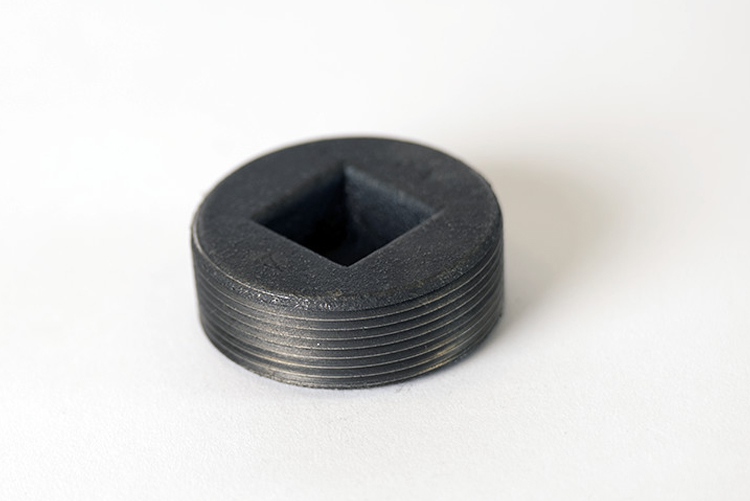

- Iron Pipe Plugs
- Iron Hex Reducer Bushings
- Iron Double Tapped Bushings
- Iron Radiator Plugs
- Standard Part Modifications
Capabilities
- 14” x 19” x 7” Hunter 10 / Horizontal Parting
- Core Set available
- Gray Iron – ASTM A126-Class 20 to Class 45
- Ductile Iron
- 60-40-18
- 60-45-12
- High / Low Volume Production
- In House Patternmaking Capabilities
Green Sand Molding
- CNC / Conventional
- ID/OD Production Machining – Low/High Volume
- High Production Threading OD & Tapping
- 1/8”-12” NPT O.D. Thread
- Production Milling – Low/High Volume
Machining
